PUNTA HUB Container

PUNTA HUB kiosk solution for managing shipments—even large ones

PUNTA HUB is a kiosk solution that can be customized to your needs. Whether it’s cold or warm storage, parcel delivery, pick-up or return, tool renting or lending or a combination of these, with the Punta system and products we can create the very package you need—on a turnkey basis.

Our kiosk solution brings added value to your procurement since its customization incorporates only the features you need in terms of kiosk properties and visual appearance. You can have the kiosk facade made completely or partially out of glass and fitted with rolling shutters or a single wicket door leading through a closed front wall. The floor plan of your PUNTA HUB kiosk can be customized to the intended use of the place. You can learn more about our standard solution under “Features”.

A kiosk customized just for you can be manufactured as a fixed solution or a readily portable one (e.g., for seasonal use). You can keep your PUNTA HUB open 24/7 to serve as a pick-up point for groceries or other products ordered from your webshop, a renting or lending point for tools or a parcel pick-up and return location for customer orders if you like.

To expand your operations or extend your customer service hours, PUNTA HUB provides you with weatherproof extra space that is easy to maintain.

Customers can enter the kiosk by a code they get after using your service. This single-use code will open a single door or locker, ensuring that the customers can only access orders or purchases of their own. A self-service kiosk solution is not tied to opening hours. This allows the customers to use your premises and services at their convenience.

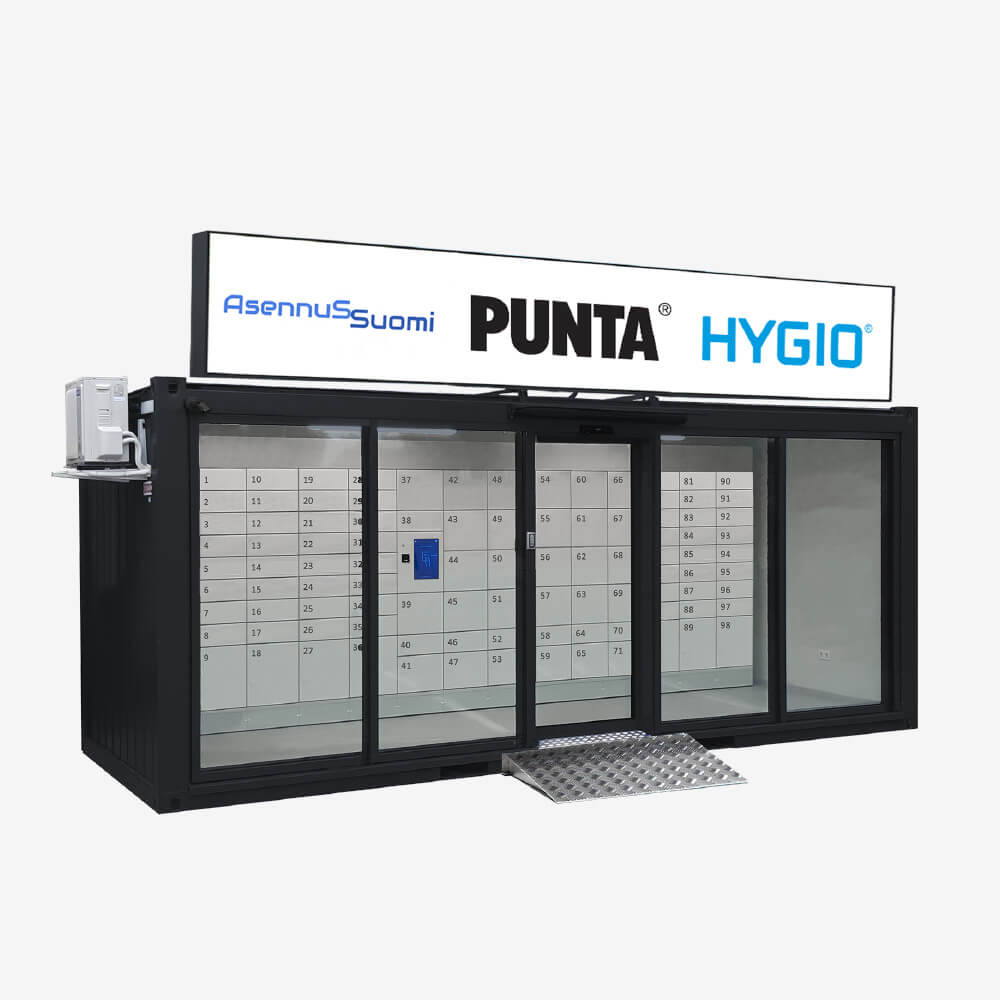

Technical specifications:

Structure: Welded steel profile frame, sheet metal walls/urethane/sheet metal, panel/glass
Insulation: 50 mm Finnfoam for the walls, roof and floor
Insulation, inner surfaces: Ceiling and walls: 12 mm plywood board, Floor: 18 mm oriented strand board (OSB)
Floor: Vinyl floor covering
Surface treatment: Paint, exterior color Mat Black RAL9005
Heating: Air-to-air heat pump
Standard equipment: Door 970 x 2,100 mm, electrical panel with residual-current device (RCD), 2 socket-outlets, 3 interior lights with motion detection, 5 exterior spotlights.
Lighting panel: 6000 mm x 1000 mm

Dimensions:

Surface area: Total surface area 14,8 m², internal surface area 12,5 m²
Self-weight: 2250 kg
Outer dimensions: 6050 mm (length), 2440 mm (width), 2590 mm (height)
Internal dimensions: 5617 mm (length), 2232 mm (width), 2252 mm (height)
Door opening: 2100 mm (height), 970 mm (width)

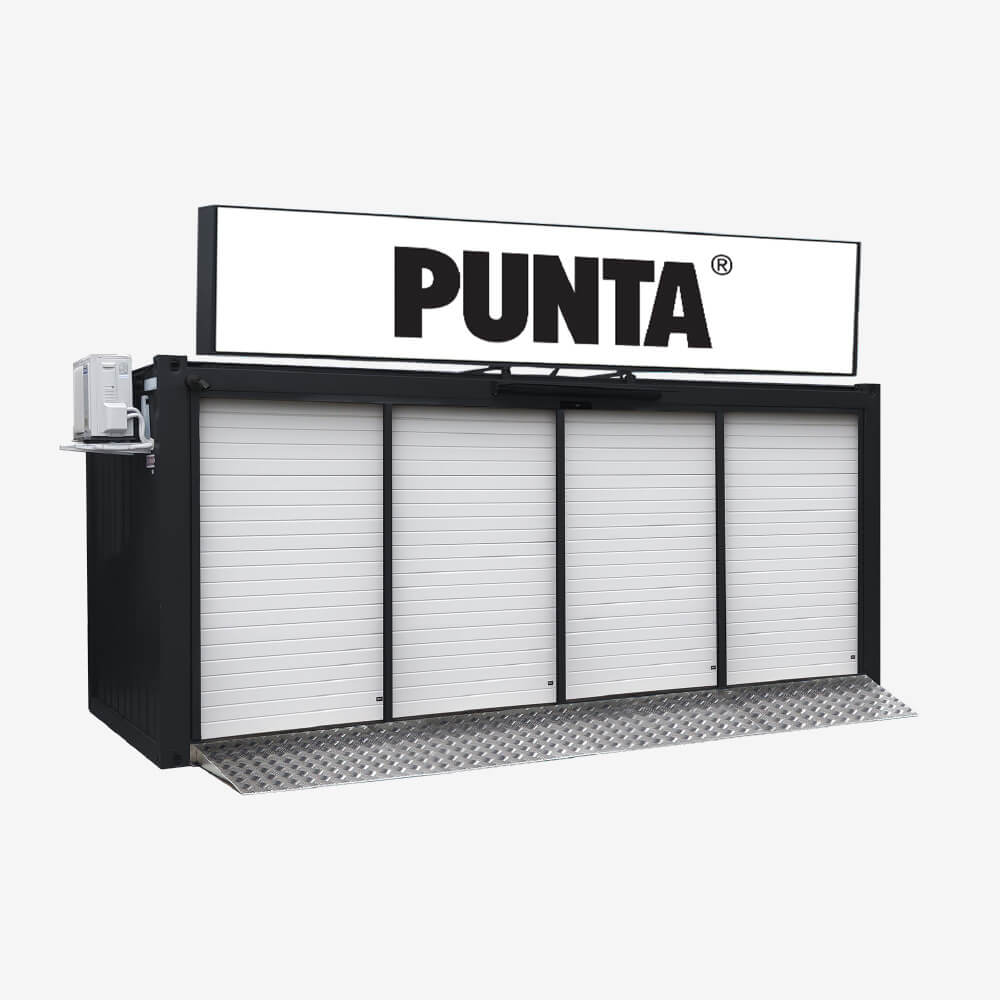

Technical specifications:

Structure: Welded steel profile frame, sheet metal walls/urethane/sheet metal panel/glass
Insulation: Floor 50 mm Finnfoam and walls PIR 40 mm
Insulation, inner surfaces Ceiling 50 mm Finnfoam and walls: PIR 40 mm
Partition: 2 mm galvanized steel plate
Floor: Metal plate
Surface treatment: Paint, exterior color Mat Black RAL9005
Heating: Air-to-air heat pump
Standard equipment: 4 pcs electric lifting door 1235 x 2000 mm, electrical panel with residual-current device (RCD),4 pcs socket-outlets, 4 pcs luminaire, 4 pcs spotlights out
Lighting panel: 6000 mm x 1000 mm

Dimensions:

Surface area: Total surface area 14,8 m², internal surface area 3,15 m²
Self-weight: 2250 kg
Outer dimensions: 6050 mm (length), 2440 mm (width), 2590mm (height)
Internal dimensions: 2250 mm (length), 1400 mm (width), 2300 mm (height)
Door opening: 1235 mm (height), 2000 mm (width)
