RFID-locks
Description
Advantages
Abloy SENSE+
Digilock Aspire
WT 1610 Retrofit
Description
RFID-locks
RFID lock is suitable for destinations with many users and a high turnover rate, such as offices, schools, hospitals or spas. The lock is battery operated, and the key is contactless RFID card. The lock also enables use of an existing access card, since new RFID cards are not required. The access card can be also wristband or key tag.
Advantages
Advantages and Benefits
- Easy to use
This means that there will be no problem with users forgetting with which code the lock was locked. This reduces the need for staff to come and open locks. - No mechanical key
Reusable key cards. No need to order new keys to replace lost ones, which brings significant savings to maintenance costs. - Efficient use of lockers
Thanks to the timer functions, you can get the locks to open automatically so that no one will be able to reserve a locker for longer than allowed or not being able to make lockers left locked by accident accessible to customers. - Can be installed in existing doors
- Operating principle
A locker can be rented for a specified time, or the locker can be a personal locker. - Uses existing user data
Can bring personal data from other software, enabling single data register maintenance. - Log Function
Lock events are readable by software that is separately available so that you can see with which key and when a lock was closed and opened.
Abloy SENSE+

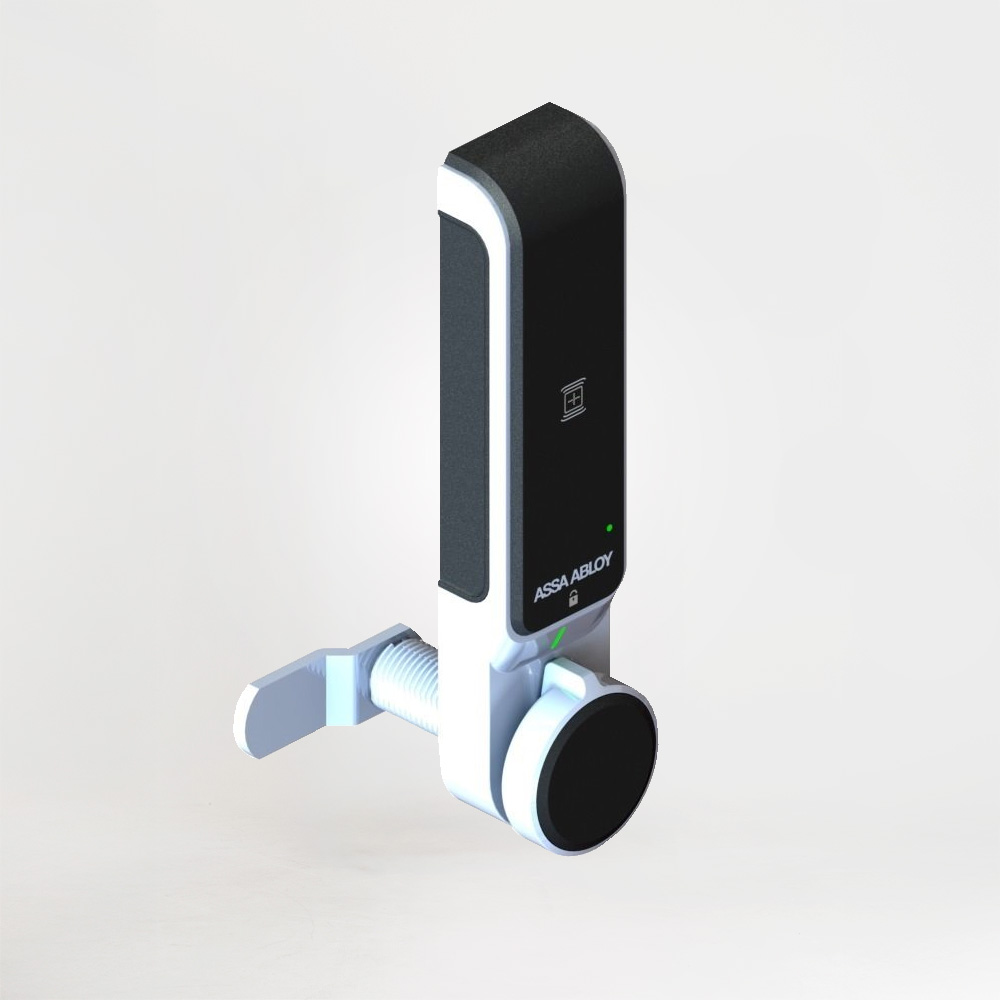

ASSA ABLOY SENSE+
– Smart and Versatile Locker Lock Solution.
ASSA ABLOY SENSE+ is a standalone, battery-operated RFID locker lock utilizing MIFARE technology. It offers a secure and user-friendly locking solution for a wide range of environments, such as schools, offices, swimming halls, and gyms.
Key Features
- Versatile usage: Supports up to 100 RFID cards per lock, categorized as user, maintenance, and master cards.
- Operating modes:
- Private mode: Lock operates with pre-programmed user cards.
- Public mode: Lock can be locked and unlocked with any compatible RFID card – ideal for gyms and public locker use.
- Security: Built-in overload protection in the knob mechanism prevents damage in case of misuse or forced turning.
- Emergency power: USB interface allows emergency power supply if the batteries are depleted.
- Easy installation: Available in two cylinder lengths, suitable for doors with thicknesses of 1–15 mm or 15–23 mm.
- Environmental durability: Designed for dry environments, but can also be used in humid areas when fitted with a rubber gasket.
Smart Management
SENSE+ can be programmed and managed either via programming cards or a dedicated management software. The software allows:- Card management: Add, remove, or block cards remotely – no physical card required.
- Event log tracking: Monitor access and locking events including timestamps and method of access.
- Custom settings: Configure automatic unlocking after a certain period or in real time.
Use cases for the lock
- Schools and educational institutions: Personal lockers for students.
- Offices: Secure personal storage for staff.
- Gyms and swimming halls: Lockers for guests and members.
- Hospitals and healthcare: Medication cabinets and staff storage areas.
Digilock Aspire

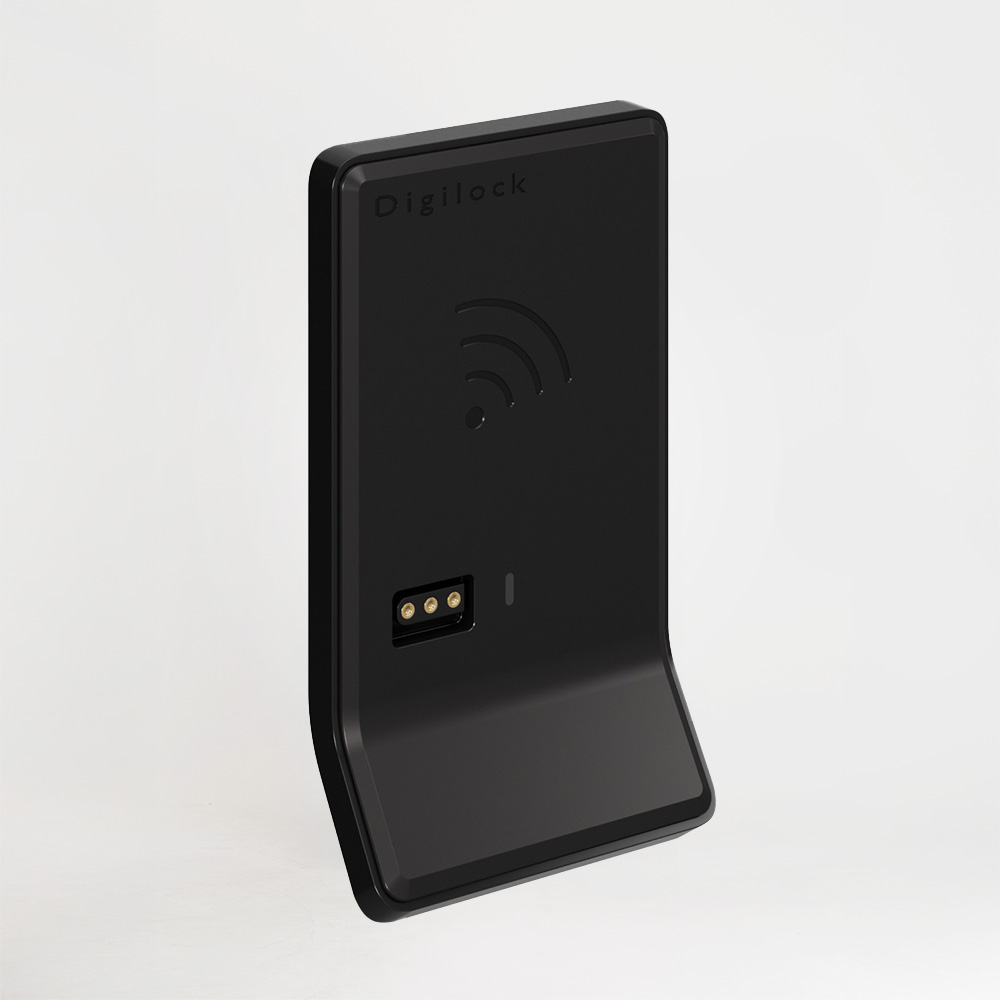

Digilock Aspire – Advanced/Basic – RFID
Key features:
- Touch RFID
- Basic: 20 simultaneous users
- Advanced: 250 simultaneous users
- Functionality Options: Shared Use/Assigned Use
- IP55
- Advanced auto unlock
- Two model: RFID Standard Body with Pull and without pull
- Management with an electronic master key
- Finish Options: Black (standard) or Brushed Nickel
- Battery life 3-5 years (Battery: 4 x AA)
- Warranty 1 year
- Simple installation
WT 1610 Retrofit

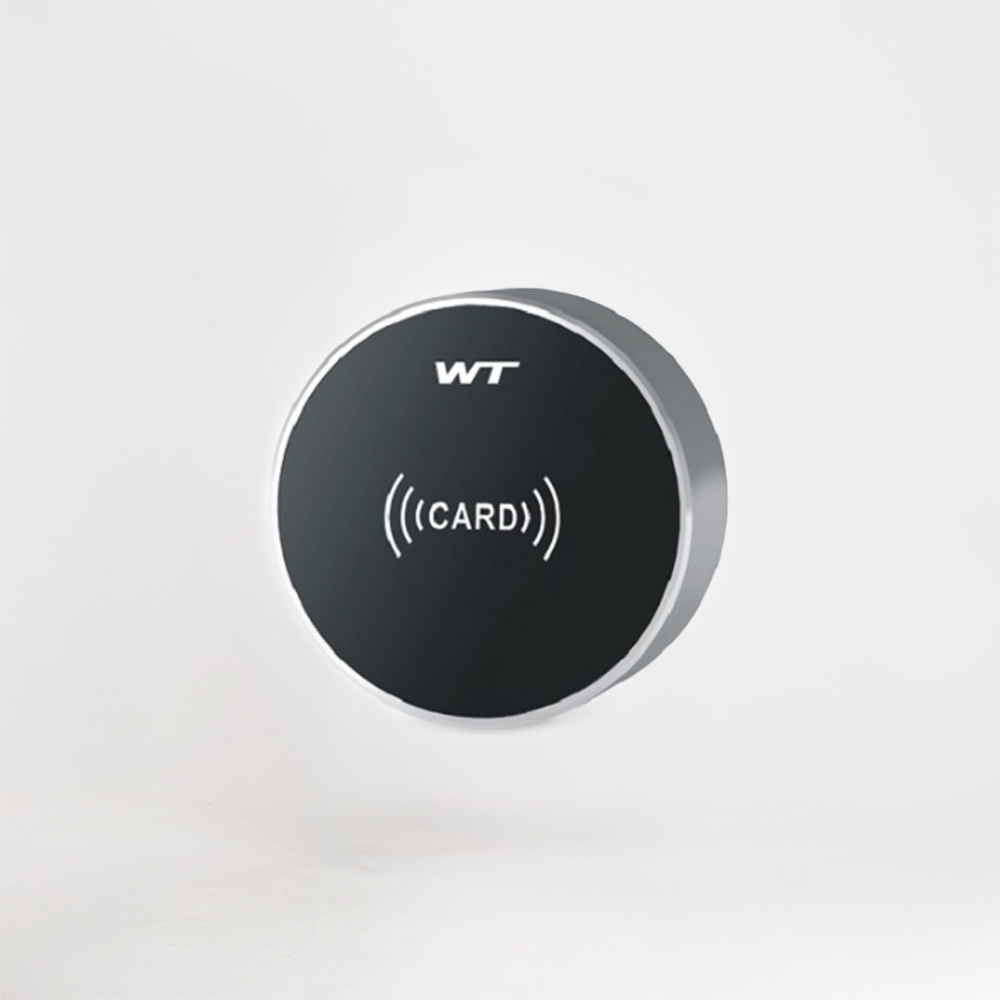

WT 1610 Retrofit – retrofit lock
– Keyless Access with Smart Management.
The WT1610 RFID lock is a modern, easy-to-use locking solution that can be installed directly in place of an existing keyed lock—no structural changes needed. Compatible with mounting holes sized 16×19 mm.
Convenient Access with RFID Technology
- Operates with 13.56 MHz RFID tags, such as MIFARE cards and fobs
- Two operating modes:
- Public mode for shared or temporary use
- Private mode for personal lockers and compartments
- Simple installation — no wiring, no keys, no hassle
Smart and Flexible Management
- Master management card enables easy control over user permissions and lock settings
- Powered by a CR2450 battery, replaceable from outside the lock without disassembly
- Micro USB port for emergency power ensures access even if the battery runs out
Ideal For
- Office and educational facility lockers and cabinets
- Public and semi-public spaces such as changing rooms and staff areas
- Locations needing fast, keyless, low-maintenance locking solutions
